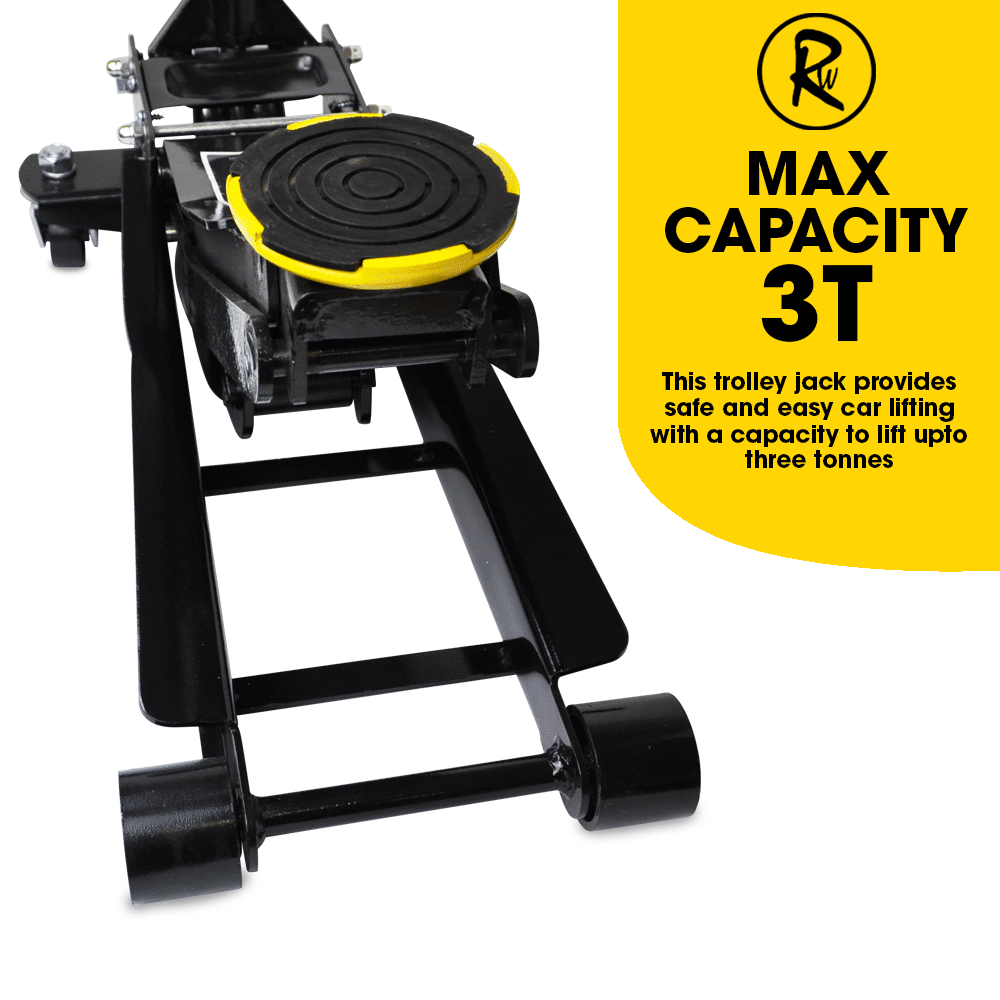

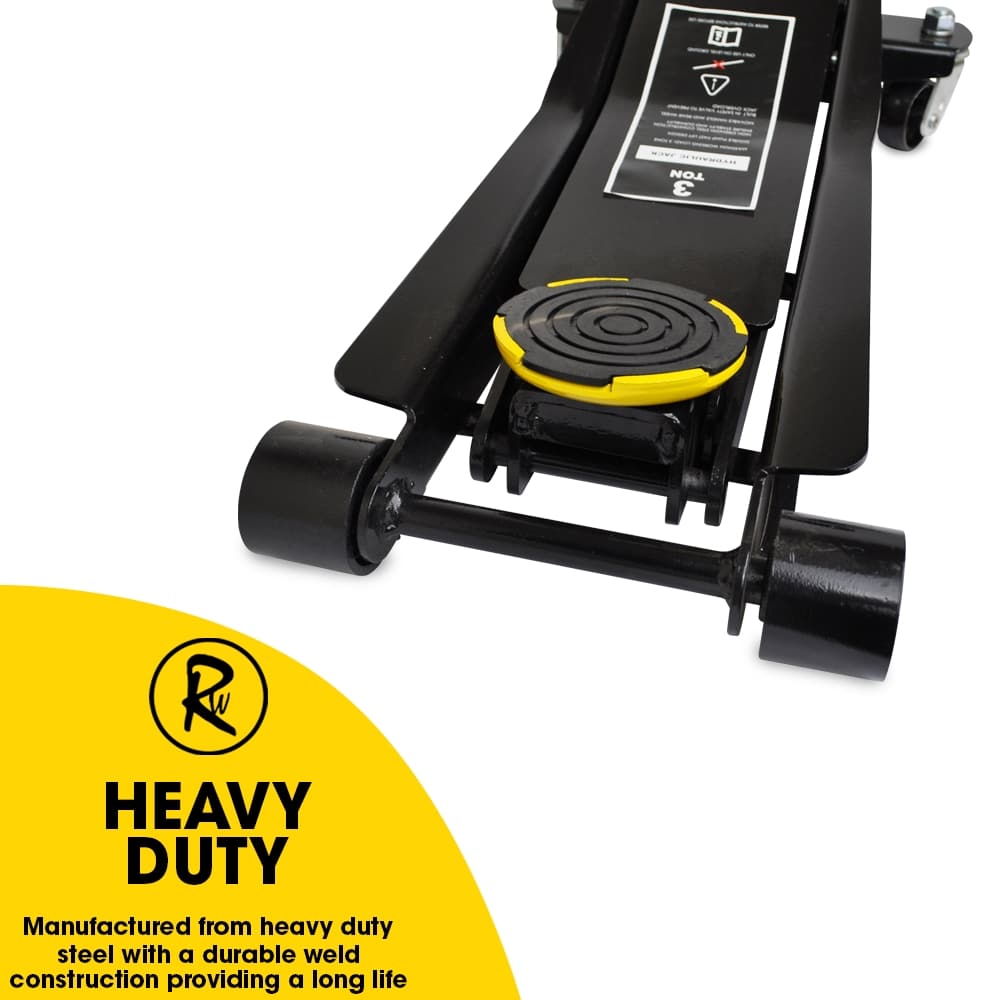

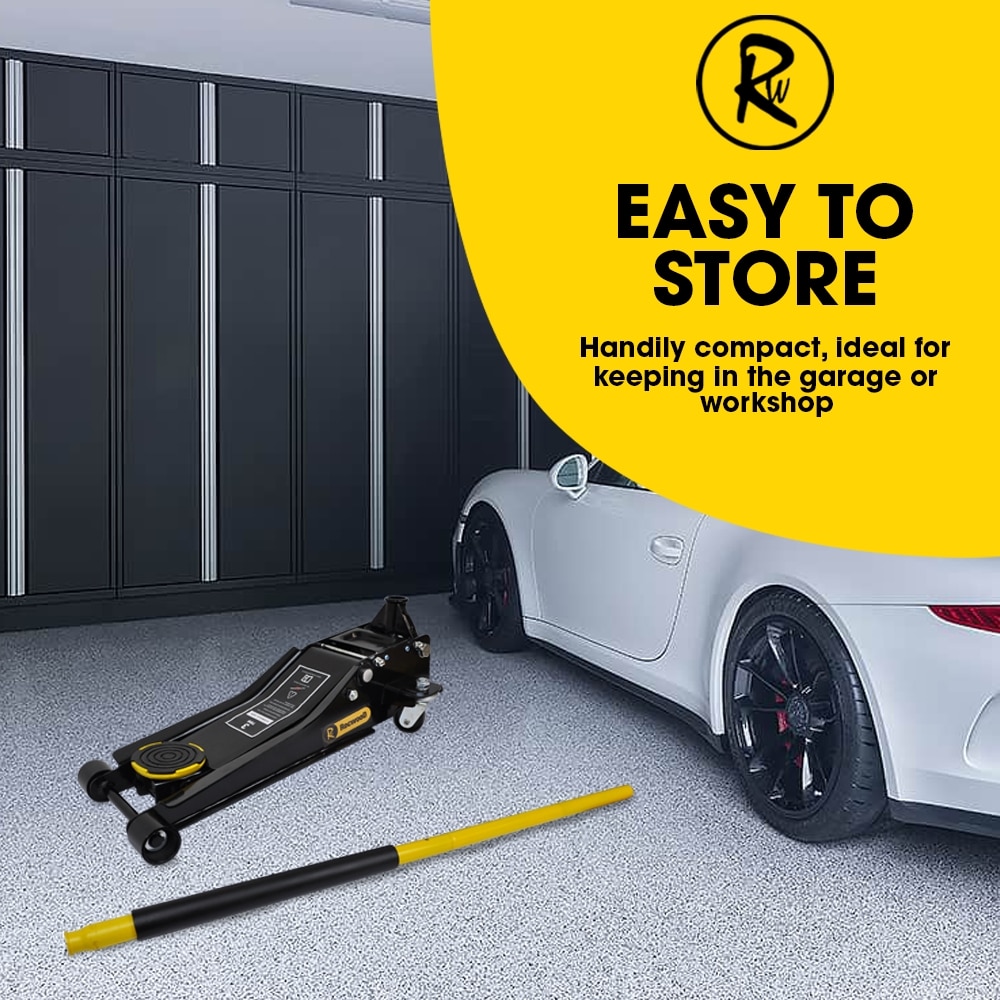

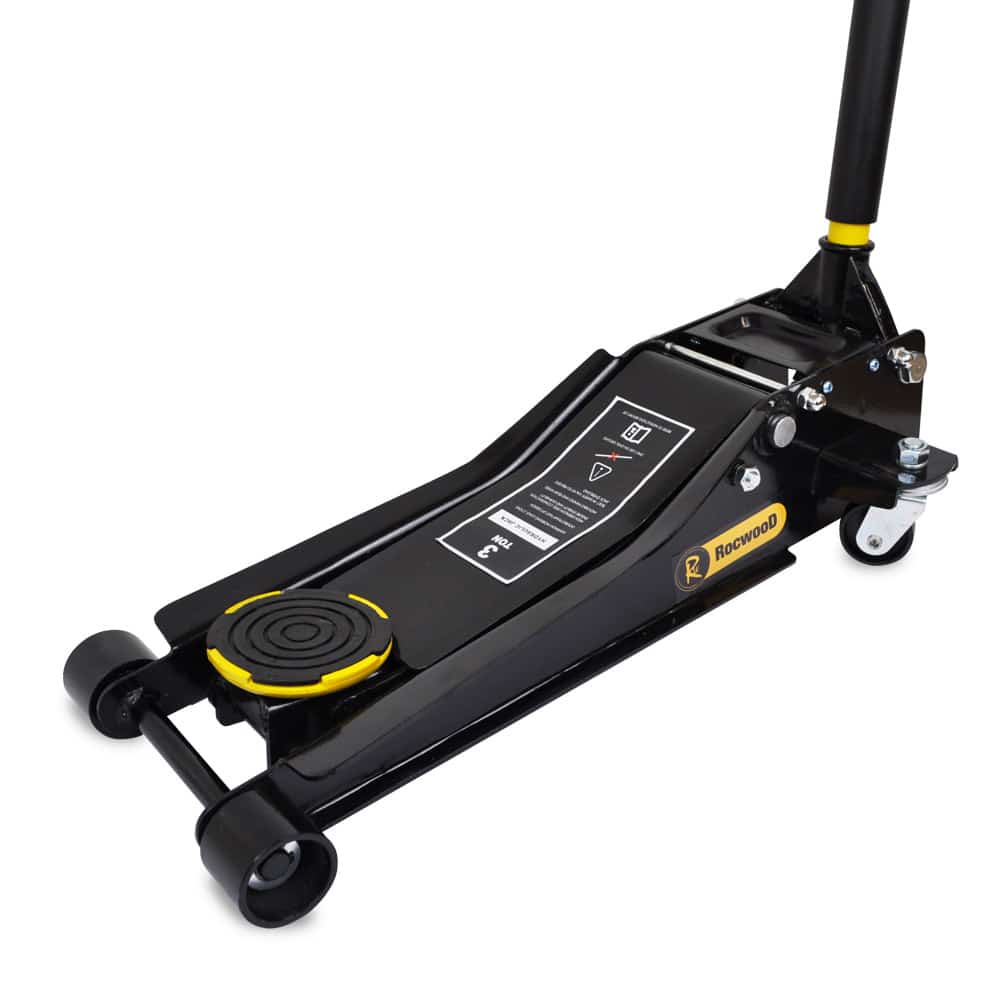

Our RocwooD RWTJ3.0 low profile Trolley Jack is the perfect accessory to help you change a tyre or sort issues under your car/van.  This Trolley Jack provides safe and easy car/van lifting with a capacity to lift up to three tonnes. Suitable for most cars/vans. It features an automatic safety overload valve. Manufactured from heavy duty steel with a durable welded construction to provide a long lasting service life. This low profile trolley jack is a fantastic product to get under those low to the ground heavy cars, it is easy to take up and down too. You can lift any vehicle up to three tonnes with ease.

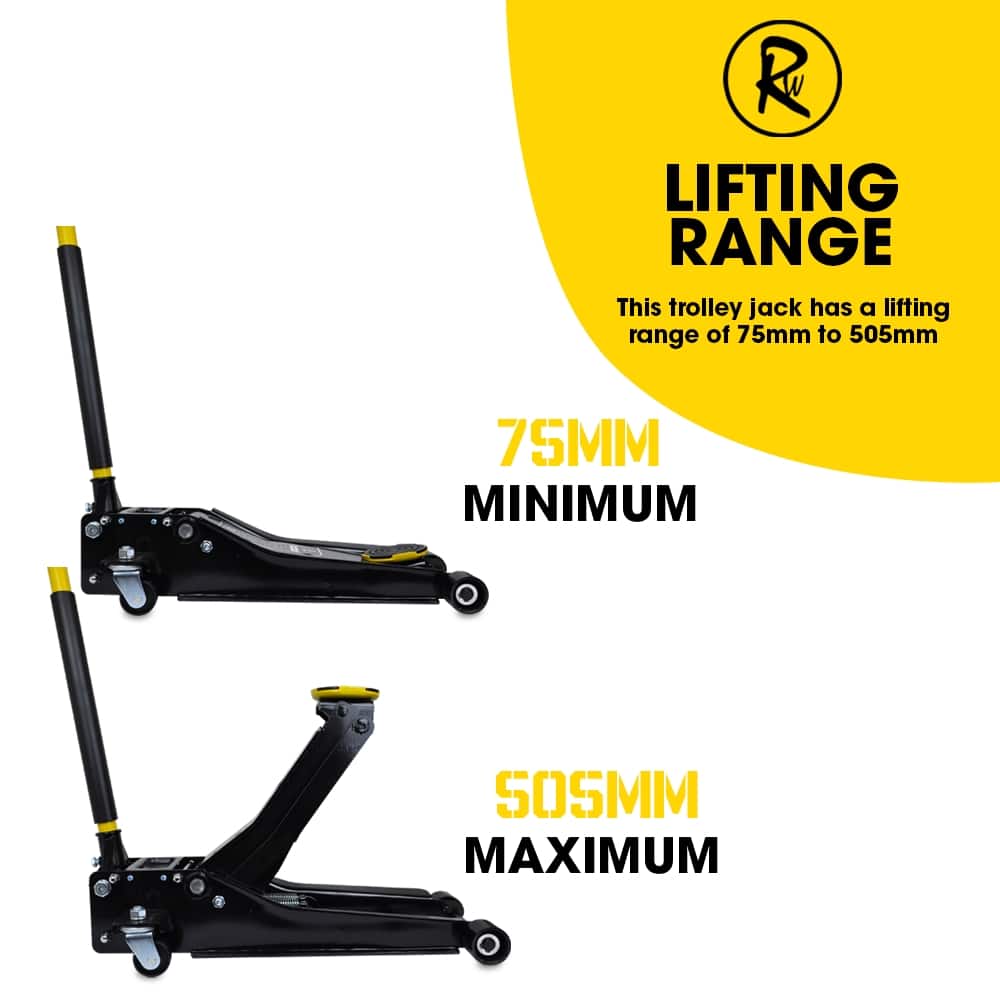

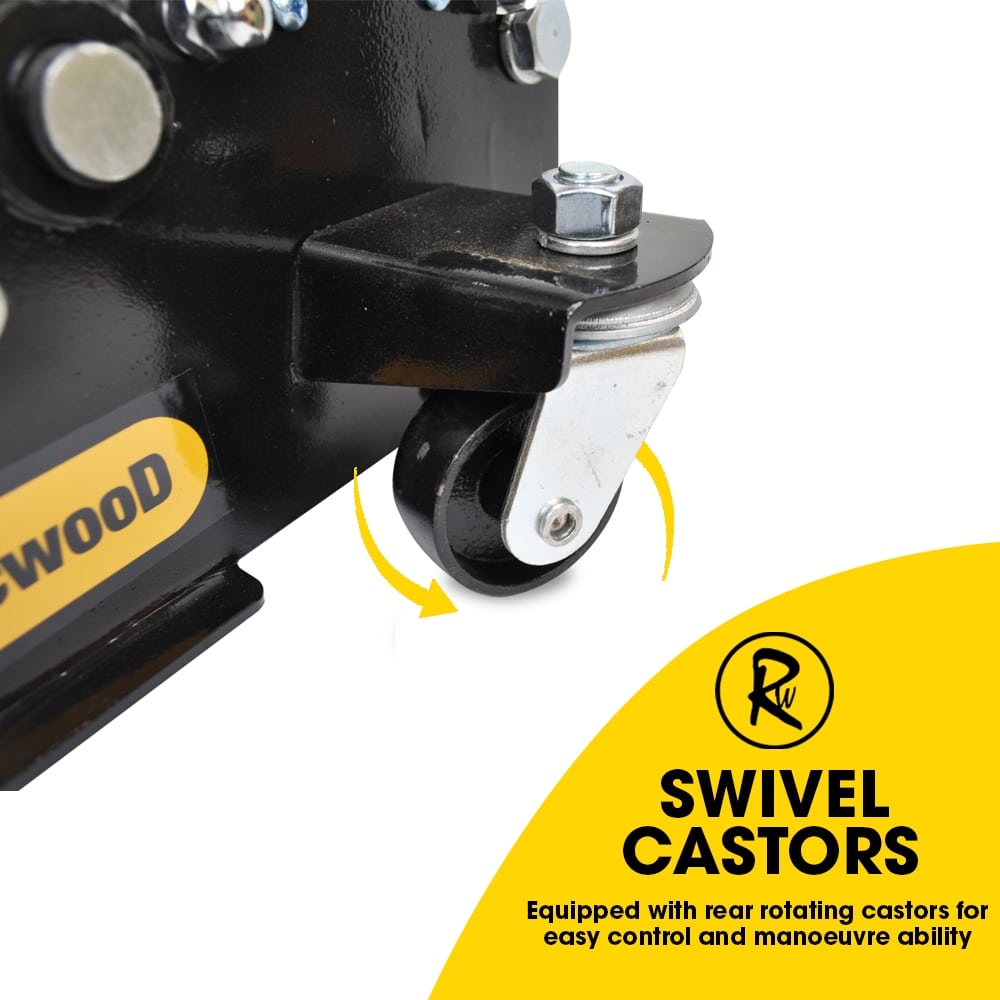

Equipped with rear rotating castors for easy, control and manoeuvre ability. Built-in one piece hydraulic unit with pump-through action designed to prevent the handle locking at Maximum ram extension. 75mm to 505mm height range.

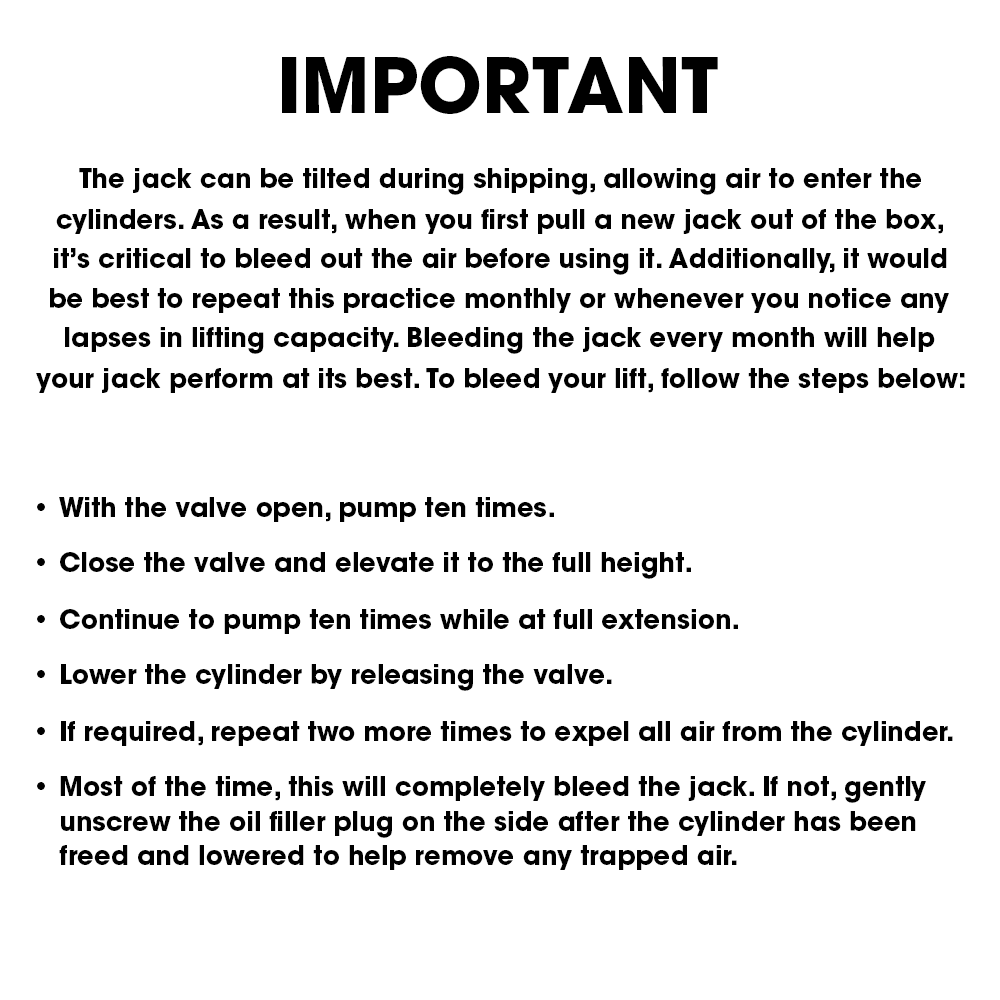

IMPORTANT –

Tilting the jack during shipping allows air to enter the cylinders. As a result, when you first pull a new jack out of the box, it’s critical to bleed out the air before using it.

Additionally, it would be best to repeat this practice monthly or whenever you notice any lapses in lifting capacity. Bleeding the jack every month will help your jack perform at its best. To bleed your lift, follow the steps below:

With the valve open, pump ten times.

Close the valve and elevate it to the full height.

Continue to pump ten times while at full extension.

Lower the cylinder by releasing the valve.

If required, repeat two more times to expel all air from the cylinder.

Most of the time, this will completely bleed the jack. If not, gently unscrew the oil filler plug on the side after the cylinder has been freed and lowered to help remove any trapped air.

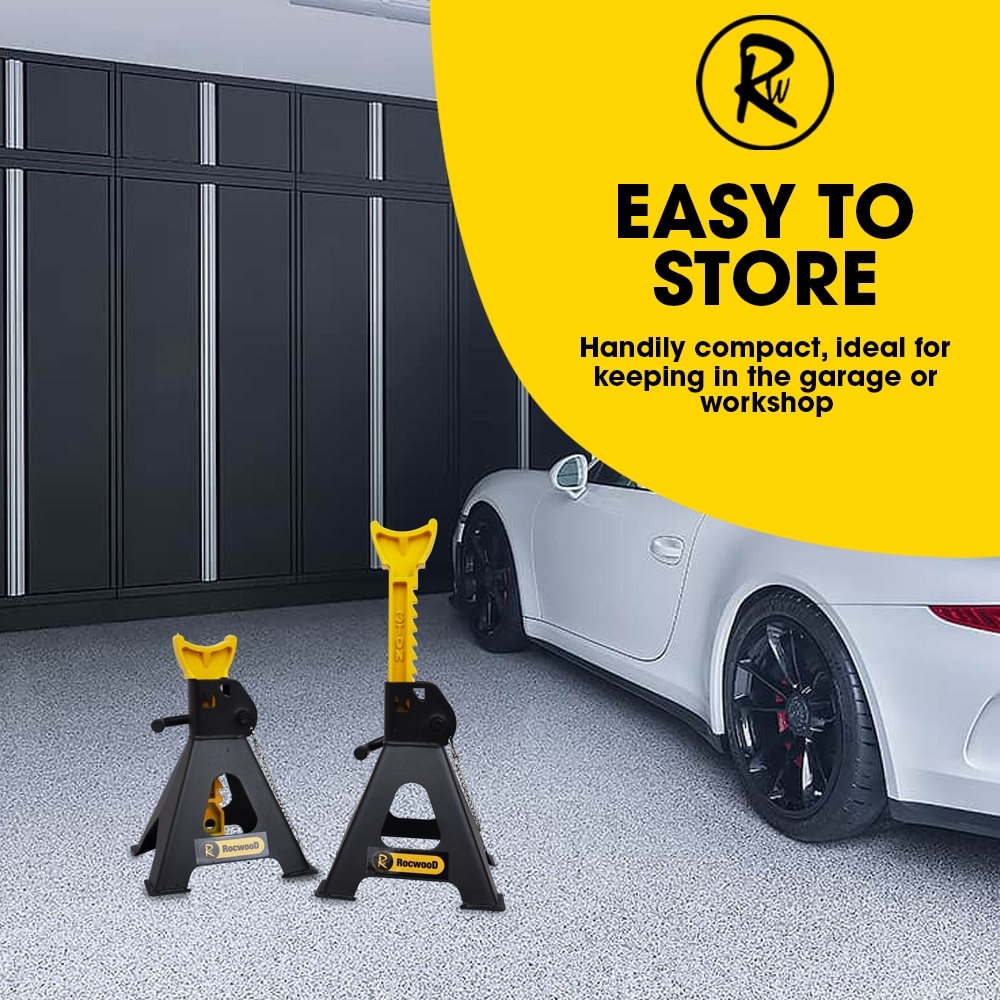

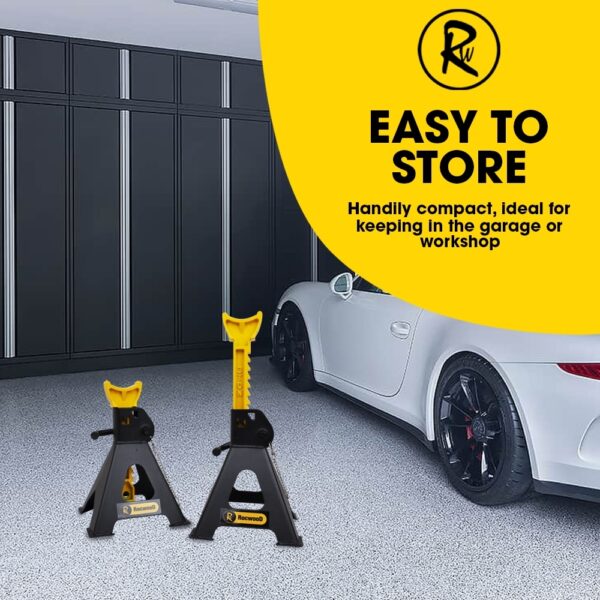

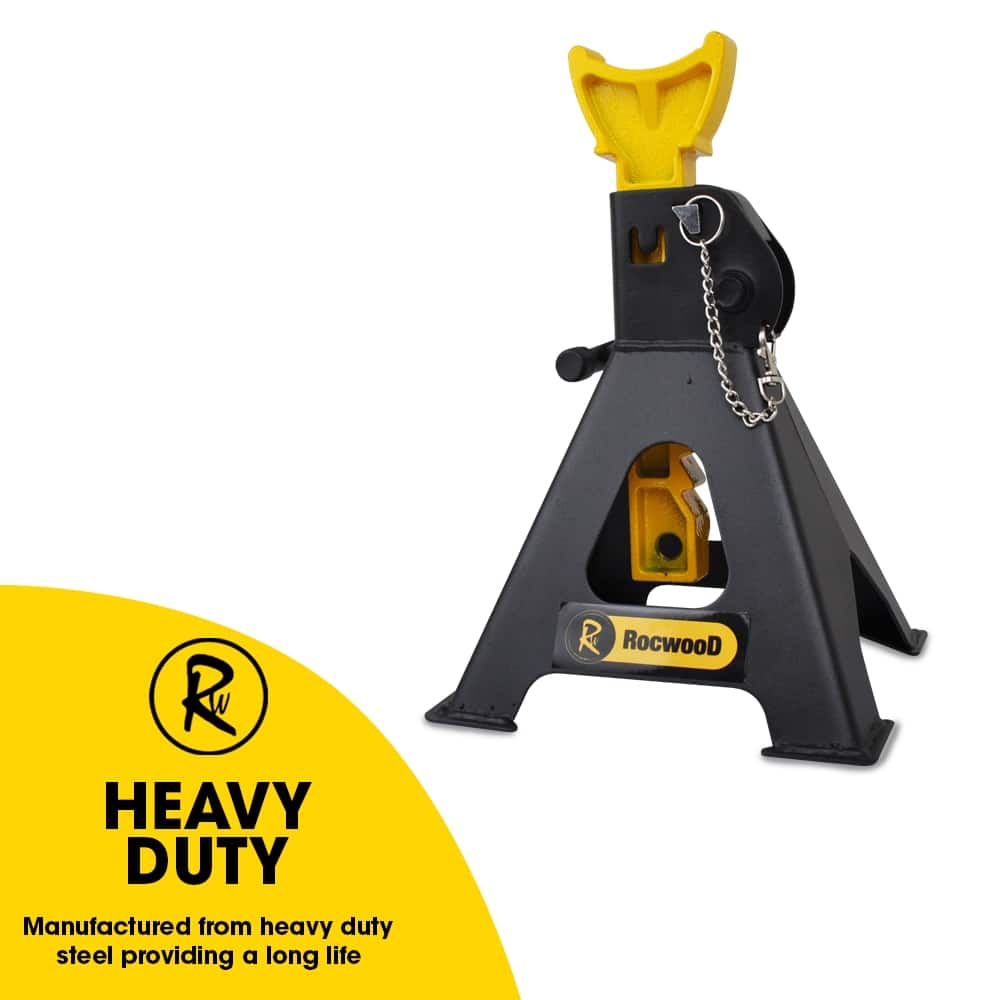

An axle stand is a specialist tool used to support cars and other vehicles that have been lifted off the ground to access the underside. They are raised using hydraulic jacks  to carry out maintenance or make repairs including changing the oil or fixing an exhaust pipe. Axle stands are made from hardwearing, load-bearing metals like aluminium, steel or cast iron which will not slip, break or twist when exposed to the weight of a car. They are a simple, strong and functional design.

Axle stands are more robust than jacks because they do not contain hydraulic or mechanical parts which can wear out over time. They are also less prone to shifting position under stress, movement which could cause the vehicle to fall.

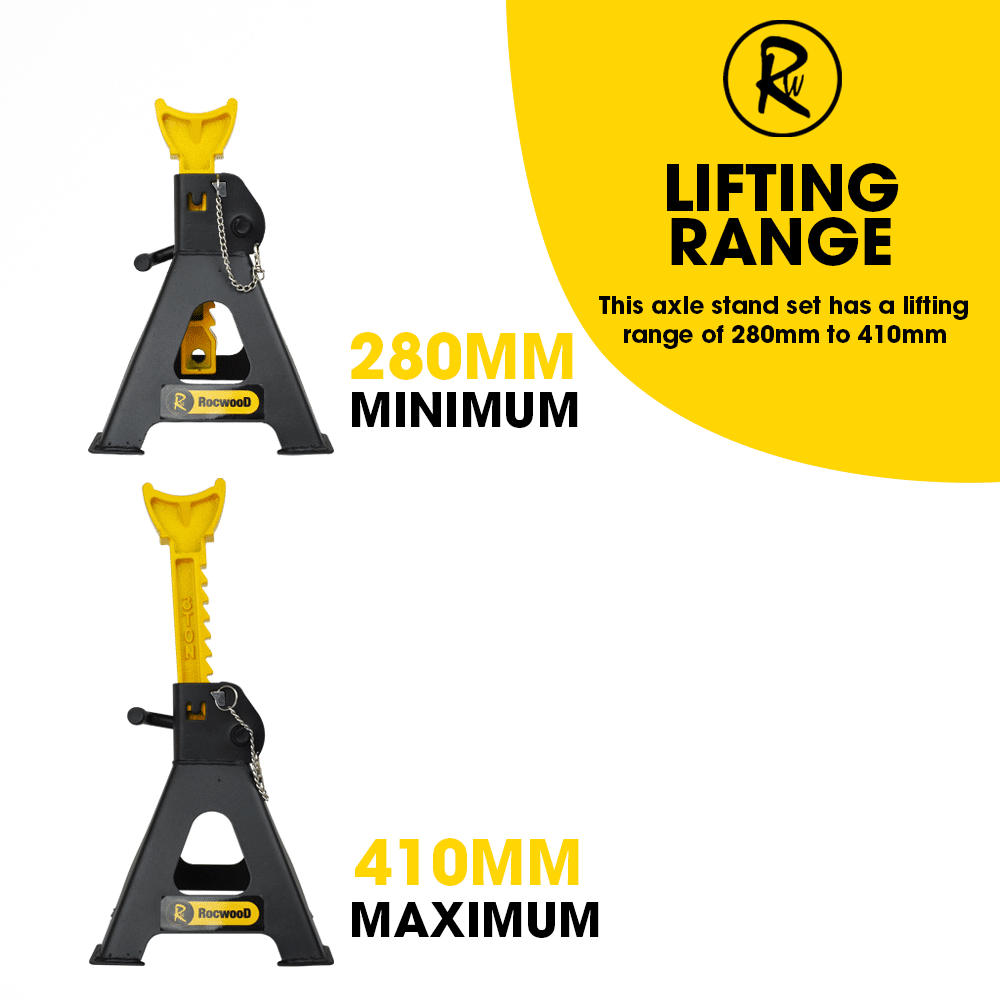

When using axle stands, it is important to ensure that they are suitable for the vehicle you will be supporting and will be able to support its full weight. It is also important to place chocks (wheel wedges) beneath the wheels opposite the end of the car you are raising – i.e. beneath the front wheels if you are raising the back of the vehicle, and against the back wheels if you are raising the front. Safety is always an important consideration but especially so when fatal accidents are a possibility. It features ratchet adjustable for quick, easy height adjustment and easy of lowering the car.

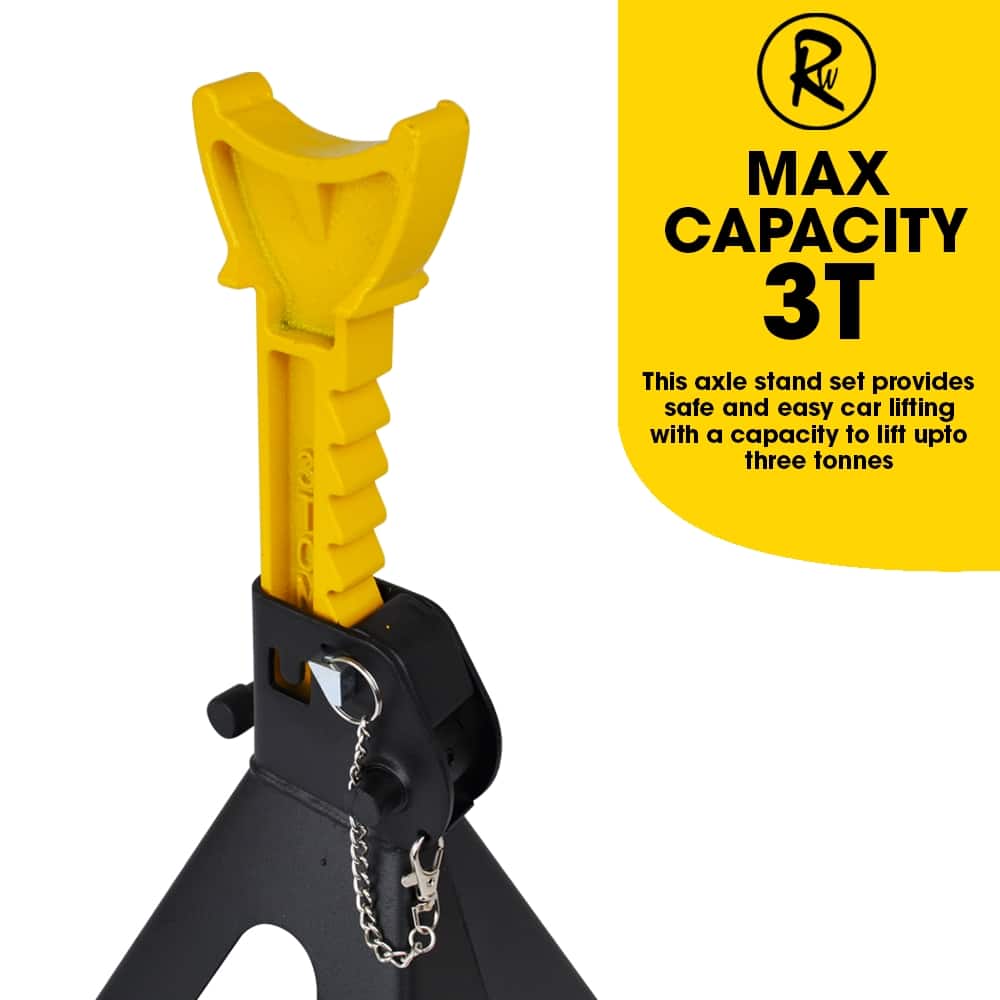

Our axle stands are high quality, strong and each axle stand is rated up to 3 ton load capacity. Perfect for most automotive maintenance and repair jobs.

In addition:

• Conforms to TUV/GS safety standards.
• Safety locking system.

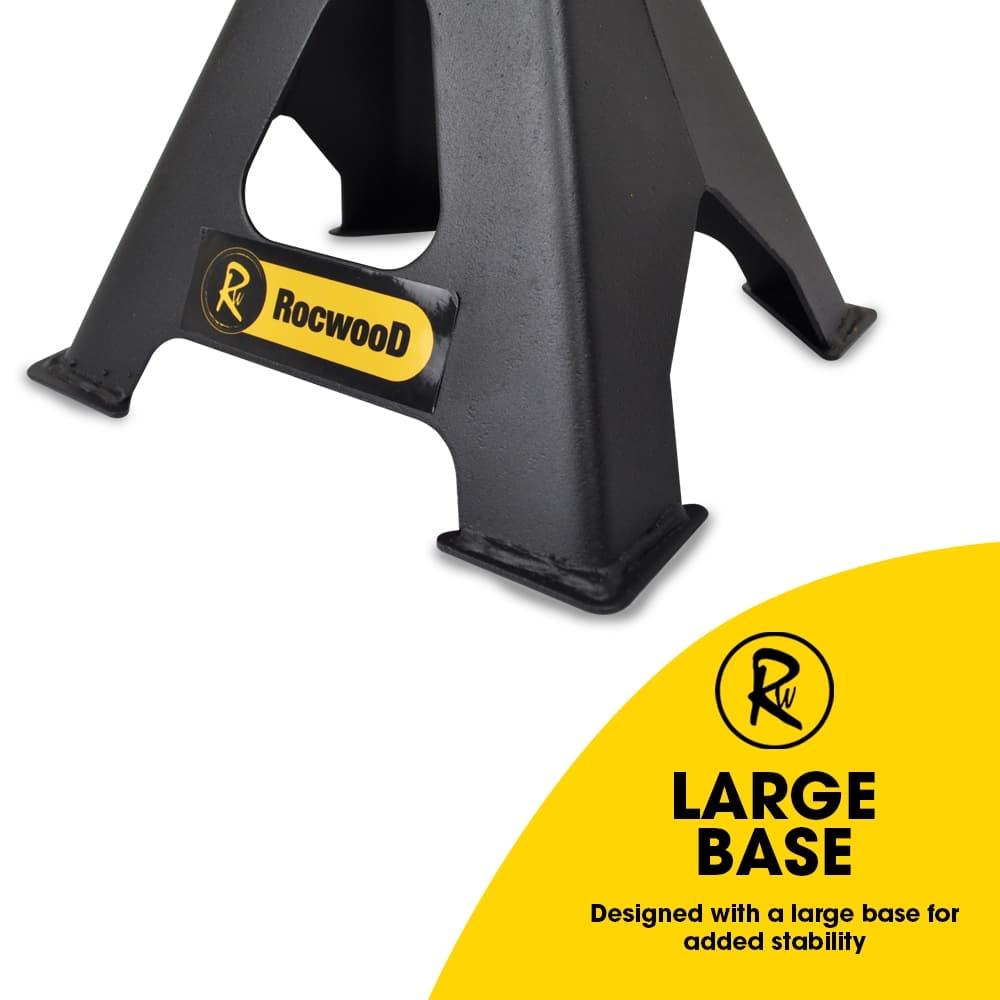

• Large stand base for added stability.
• Long, lasting and durable construction for a long service life.

Trolley Jack Carton Dimensions – L 80 x W 21.5 x H 18cm

Trolley Jack Carton Weight – 33.4 kg

Axle Stand Carton Dimensions – L 22 x W 20 x H 33cm

Axle Stand Carton Weight – 6kg

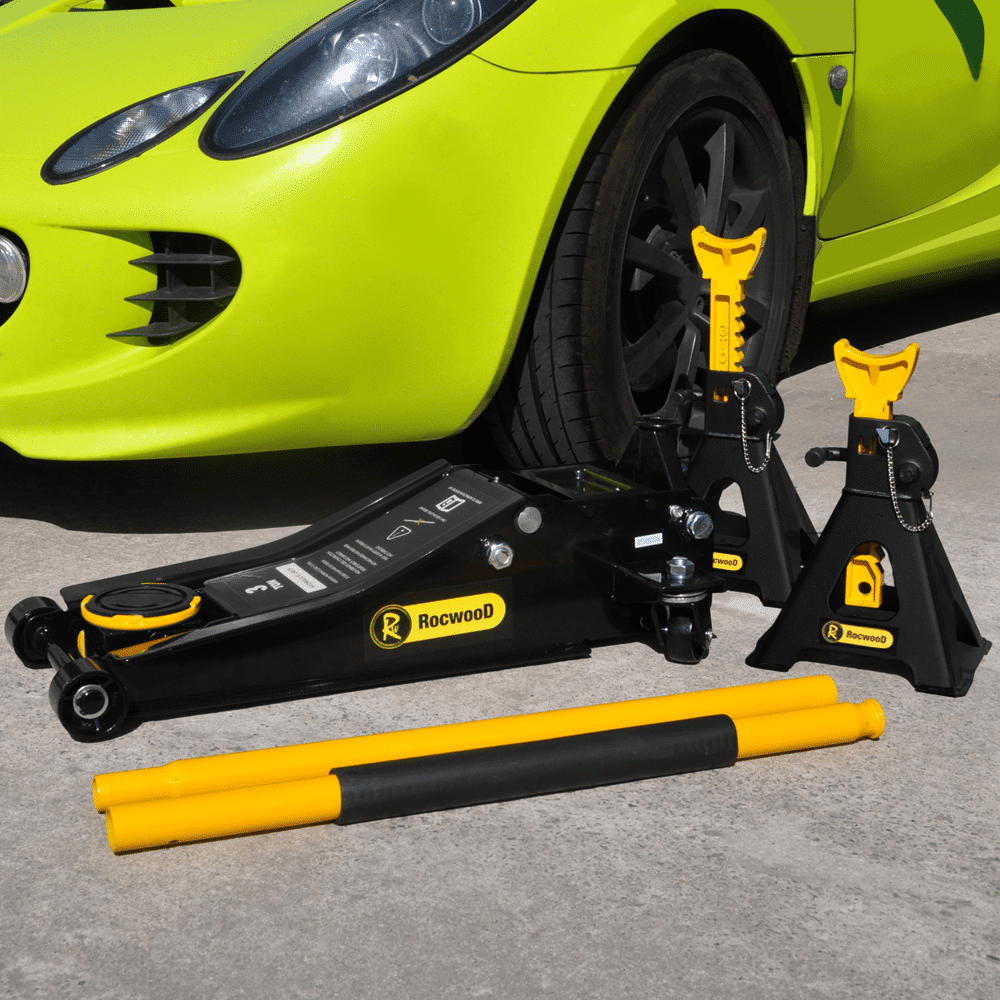

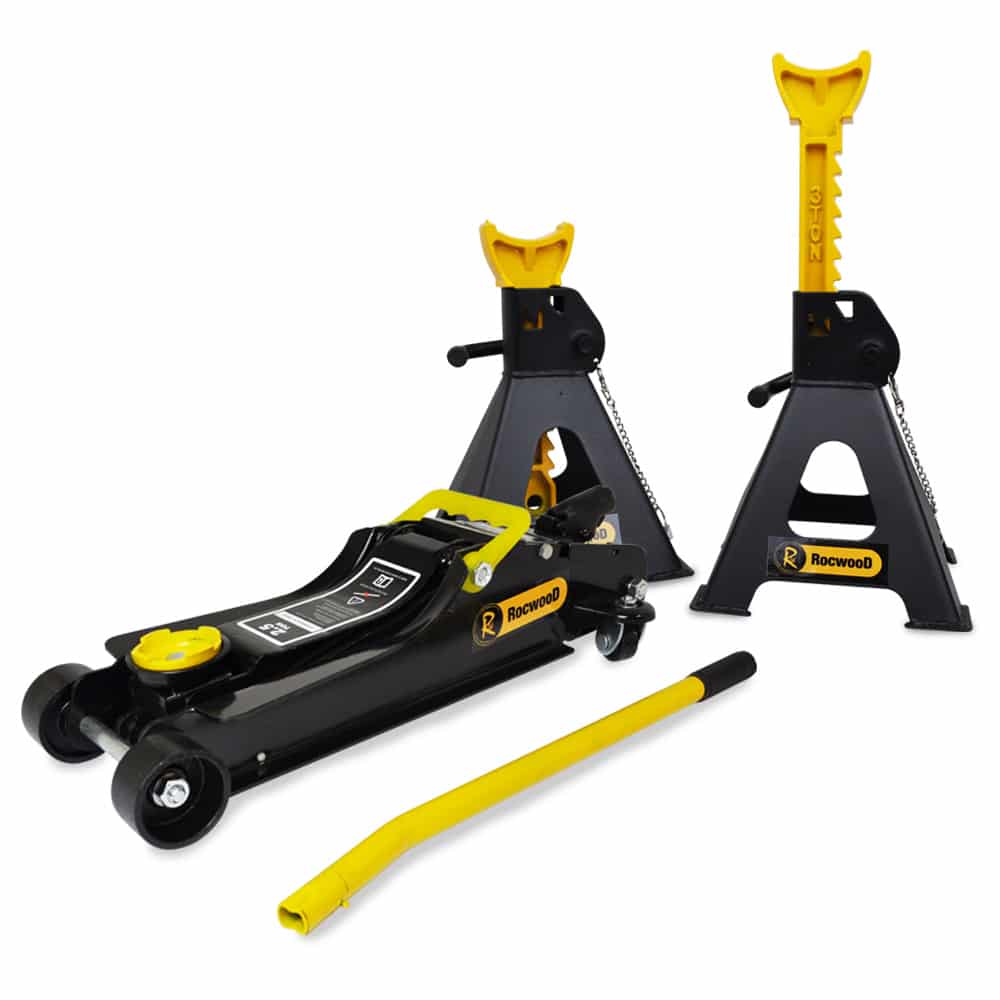

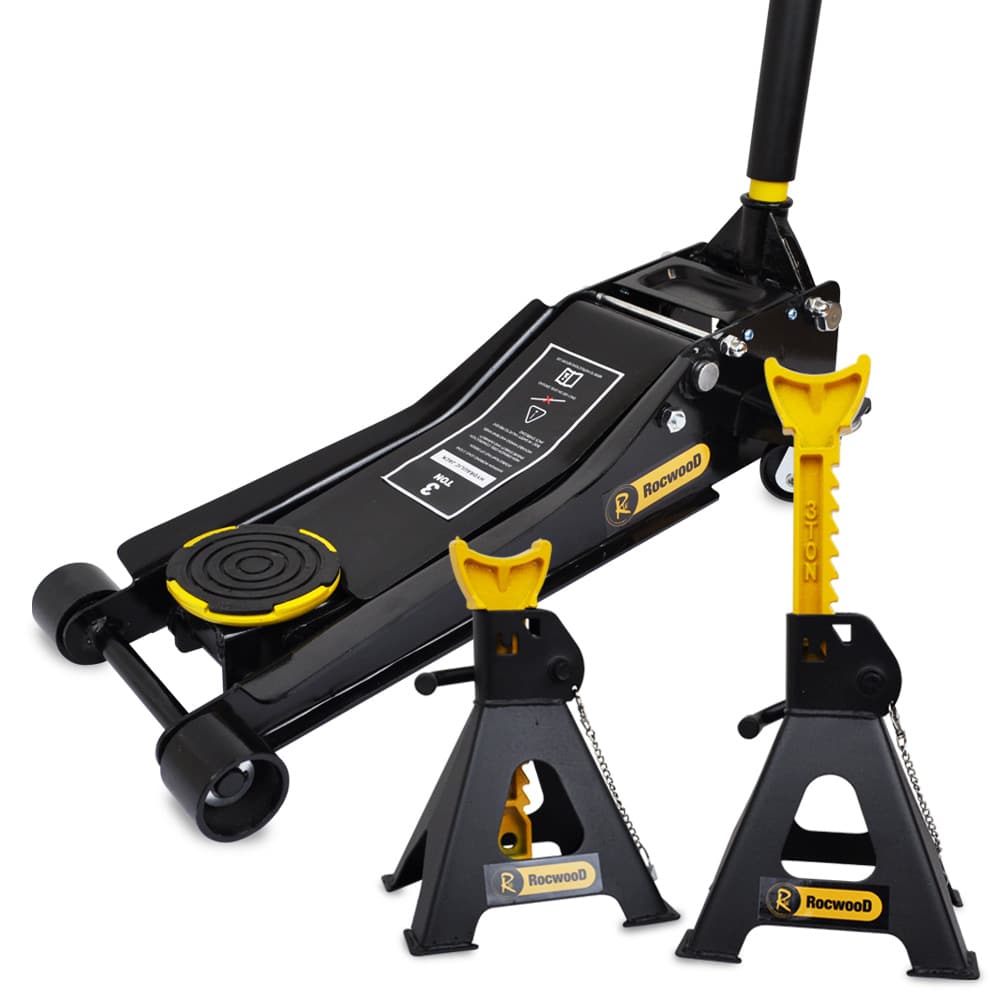

• 1x RWTJ3.0 Trolley Jack
• 2x RWAS3 Axle Stands

RWTJ3.0 IM

RWAS3 IM

Click the link to access the Google Drive of all RocwooD Declorations of Conformity: Click Here

(This is a work in progress)
